Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515 type 214M Multi Loom Shuttle Box Head C-11/C-12. The shuttle box accessories C-11 and C-12 of the multi shuttle weaving machine form left and right hands, with C-11 being the left hand. The diameter of the front circular hole is 12mm, and the distance from the center of the hole to the tail is 211mm. The planar length of the four screw holes is 18cm.

The total length of the C-12 multi shuttle box head is 22.5 centimeters, the total thickness of the tail is 10mm, the face width is 37mm, and the transverse length of the screw hole is 17mm. The 1515 multi shuttle device can also be applied to the 1511 and GA615 models of weaving machines, divided into 1X4 multi shuttle sets and 4X4 multi shuttle devices.

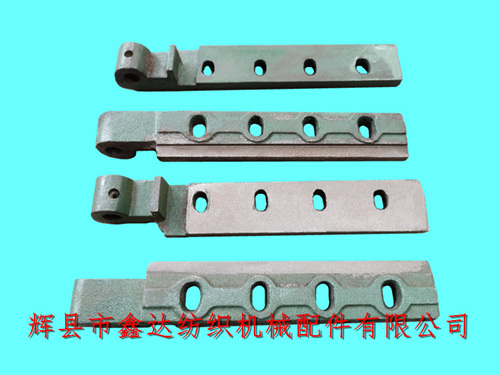

They are used in a 1x4 multi shuttle box with one each, and the width of the side machined plane is 8 millimeters. The following are the front and back views of the shuttle box heads C-11/C-12 of the 214M multi shuttle loom:

1515 Multi Shuttle Loom Shuttle Box Accessories - The material of shuttle box heads C-11 and C-12 is HT15-33 (gray pig iron), which are mainly used to support the shuttle box backboard of multi shuttle boxes.

If you need to purchase 1515 multi loom parts, 1X4 or 4X4 multi shuttle parts,GA615 Multi Loom Parts, weaving machine shuttle box heads, cast iron textile machine accessories and other products, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
