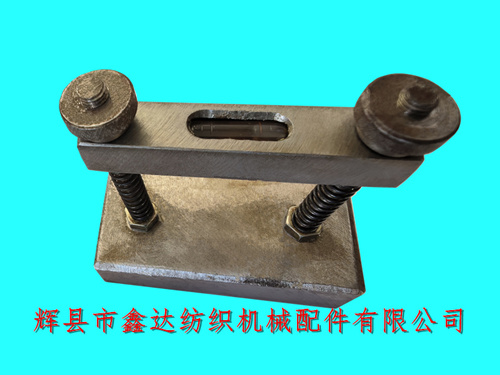

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 12-06A Sley Angle Corrector Loom Tool Level Base,textile hardware and tools-1511M-E-12-6A Reel Angle Corrector, which is mainly used to measure the anteroposterior inclination of 1515-3310(1511-Q2 shuttle board), 3307(K14 shuttle box bottom board) and 3308(K15 shuttle box bottom board). The base of the level gauge is an angled trapezoidal block with a total length of 81mm and a width of 40mm, with a thickness of 24.5mm on one side and 18.5mm on the other.

In the middle of the calibrator are M6 screws and nuts. The total length of the screws is 69.5mm, and the heights after installation are 61mm and 62mm；; The width, height and length of the rectangular block on which the level meter is installed are 12.8mm, 12mm and 68.7mm respectively.

The side surface of the level mounting block is provided with a round hole with an internal diameter of 7.5mm, so that the level can be installed in the middle of the bar block from the side surface; When the 1511M-12-06A is in use, the base is in complete contact with the bottom plate of the shuttle box or the shuttle board, and then observe the liquid level in the level meter.

There are many specifications of tools used for loom maintenance or installation. Generally speaking, Model 1511, Model 1515 and Model GA615 can be borrowed from each other, and their angles or distances for calibration are the same.12-06A Sley Angle Corrector Loom Tool Level,GA615 Loom Tool,Sley Angle Corrector,Textile Tools,Level Base.

The weight of a single sley angle corrector is 630 grams, of which the weight of the base is 529 grams; If you need to purchase textile tools, loom gauge, shuttle loom maintenance tools and other products, you can contact Mr. Yang of our company for consultation. The minimum order quantity is 1PCS.
