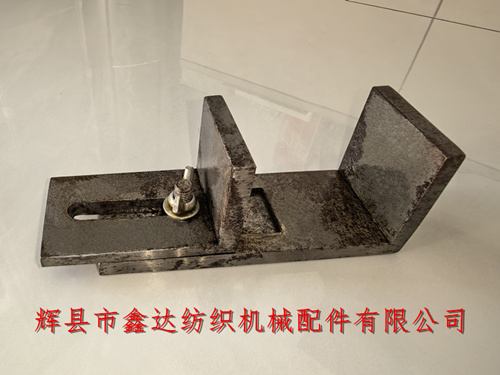

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Automatic Loom Tool Filter Shuttle Standard, filter shuttle specifications, automatic weaving machine tools, textile specifications, textile tools, and shuttle warehouse specifications. The automatic shuttle changing weaving machine tool shuttle storage filter calibration specification is mainly used to verify that the width of the shuttles loaded in the same weaving machine shuttle storage is the same, in order to ensure that the shuttle changing action of the automatic weaving machine can be carried out normally. Its dimensions are: a total length of 129mm, a width of 49.7mm, a total height of 54mm, and a specified thickness of 8.6mm for the overall material at the bottom.

The total thickness of the bottom surface of the upper adjustment seat is also 8.6mm, the thickness of the side surface is 5.8mm, the thickness of the protruding trapezoidal slide is 8.6-5.8=2.8mm, the lower width of the slide is 30.7mm, and the inner width of the middle slide is 10.7mm.

The M8 screw of the filter shuttle is fixed on the base, and there is a butterfly nut on the upper part for locking. The total length of the upper slider is 79.3mm, and the thickness of the clamping plate on both sides for the shuttle is 8mm.

The width of the bottom groove in the middle position of the picture is 28.7mm. The two corners of the U-shaped slot of this filter shuttle tool are right angles (90 °). When using, adjust the appropriate width of the filter shuttle, lock the nut, and then smoothly pass the shuttle through the slot in sequence.

The weight of a single filter shuttle according to the standard is 807 grams. If you need to check whether the outer width of the shuttle bottom meets the requirements for automatic shuttle changing, please purchase this textile tool according to the standard. We sincerely welcome your visit and guidance.
