Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Compressed Wood Joint Shuttle With 3 Eyes,textile wood fittings-three-porcelain-eye shuttles for hand-changing wooden shuttles spliced with compressed wood materials. The premise of splicing shuttles is that when the shuttle is longer than 37 cm, it needs to be spliced and lengthened because the length of compressed wood materials is not enough, and it is generally serrated engagement. This process does not affect the overall quality of the shuttle, and the appearance has flaws in the splicing interface. If red steel paper is attached to the two sides and bottom of the shuttle, the overall shuttle will be much more beautiful.

The splicing interface of compressed wood is generally near the yarn outlet porcelain eye of the shuttle, and the compressed wood should be stored for a long time after splicing, so that it can be directly processed when in use, so as to reduce the deformation of the shuttle body.

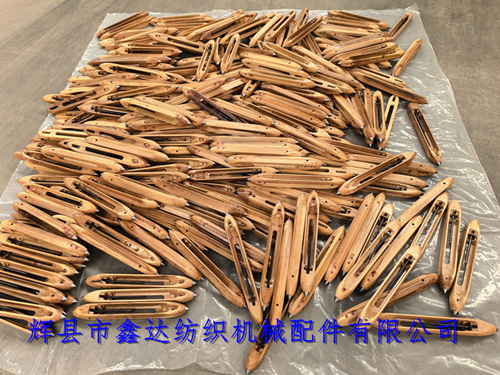

The picture above shows a 395*45*35mm three-porcelain-eye splicing wooden shuttle made of compressed wood (birch and ash); Wooden shuttle, hand shuttle, shuttle, compressed wood, spliced wood pieces; Generally, the raw materials of wooden shuttles can be divided into Cyclobalanopsis glauca and compressed wood. Cyclobalanopsis glauca has lower density and lighter shuttle weight, while compressed wood has higher density and heavier weight.

Shuttles with a length of more than 34.3 cm are generally used for hand shuttle changing, and its shuttle box can be adjusted appropriately to meet the needs of large-capacity shuttles. Compressed wood is a kind of slow mechanical compression with the volume of 1.15:1 (to prevent the damage of wood fibers and the splitting phenomenon), which has the advantages of bearing pressure and impact resistance.

If you need to purchase wooden fittings of looms-splicing wooden shuttles and compression wooden shuttles,Wooden Shuttle, Hand Shuttle, Shuttle, Compressed Wood, Spliced Wood Parts, or know the characteristics and technological requirements of such shuttles, you can contact Mr. Yang of our company for consultation. We sincerely welcome your presence and guidance. We are adhering to the business philosophy of "pragmatic and enterprising" and "mutual benefit" to provide our customers with shuttle products and services.
