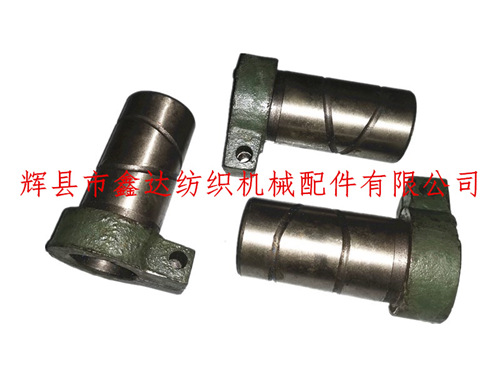

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided various types of old shuttle loom accessories E1 middle shaft (treading plate shaft) sleeves, the inner hole of the textile sleeve is 42mm, the outer diameter is 52mm, the price increase hole is fixed with M10 screws, the surface of the sleeve has arc-shaped oil groove, which can reduce friction through oil lubrication and extend the service life.

The textile machine accessories E1 are set on the treadle shaft 3301 or F9, and the clearance between them is less than 0.08mm. Each loom uses 2 pieces, with a single weight of about 0.9kg.

This product can be used in 1511, 1515, GA615 and other door width weaving machines. It belongs to general loom accessories.

Packing: packing bag, 50 pieces per bag, more than 10 pieces per order. The products are suitable for pin type and spherical looms. We insist on payment until delivery is arranged and delivery is scheduled.

Textile sleeve processing, loom accessories wholesale, axis sleeve procurement, loom accessories E1 axis (treadle shaft) sleeve customization, etc., please contact Huixian Xinda Textile Machinery Accessories Co., Ltd.
