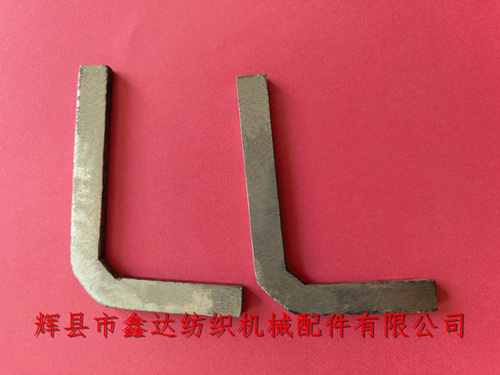

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides Loom Repair Tool E-10-103 Magazine Leg Angle gauge,the hardware and tools-loom maintenance tool 1511M-E-10-103 for determining the bobbin foot angle. The bobbin foot gauge 10-103 is mainly used for detecting and verifying the angle (93.5 degree) between the foot surface of N16 and N17 and the shuttle surface of N15. The length of this gauge tool is 10.5mm, the width is 68mm, and the overall thickness is 6.2mm. The accessories of Part 1511M-E belong to the category of loom tools, that is, the part number starting with E is the product of maintenance tools.

When in use, the outer edge of the 10-103 angle gauge is in contact with the bottom plane of the shuttle library foot and the inner plane of the front part of the shuttle library, and their normal installation angles are 93.5. Use this gauge to assist the inspection, and adjust the installation angle of the shuttle library foot of the loom as needed. The minimum order quantity of loom maintenance tool 1511M-E-10-103 is one.

The above picture shows the back of gauge 10-103, and the net weight of each gauge is 85g. This tool is suitable for shuttle looms of models 1511, 1515, GA611 and GA615, and it is a tool for installing and checking the position of automatic shuttle magazine of looms. Whether the loom parts are installed reasonably or not determines the service life and structural effectiveness of loom parts.

Textile tools are an important part of loom installation and maintenance. Tools are for the convenience of loom installation and maintenance, and they occupy an important factor in textile accessories. If you need to purchase loom gauge, loom tools, textile maintenance tools, shuttle gauge and other products, you can contact our company for consultation.
