Huixian Xinda Textile Machinery Accessories Co., Ltd. offers Fabric Inspection Mirror, Density Mirror, Density Inspection, Textile Tools, Weaving Machine Tools,a limited quantity of 1-inch weaving chrome-plated density mirrors fabric inspection tools. These inspection tools are folding-type textile instruments made of iron, with a chrome-plated surface. The magnifying lens has a diameter of 20mm and is secured by two clamping layers. The surrounding metal frame has a width of 32.2mm, and the total length of the unfolded inspection tool is 122mm. It is used to inspect the warp structure of fabric, requiring manual counting of warp and weft threads within the square frame in the accompanying image. The square frame has a side length of 1 inch (2.54cm).

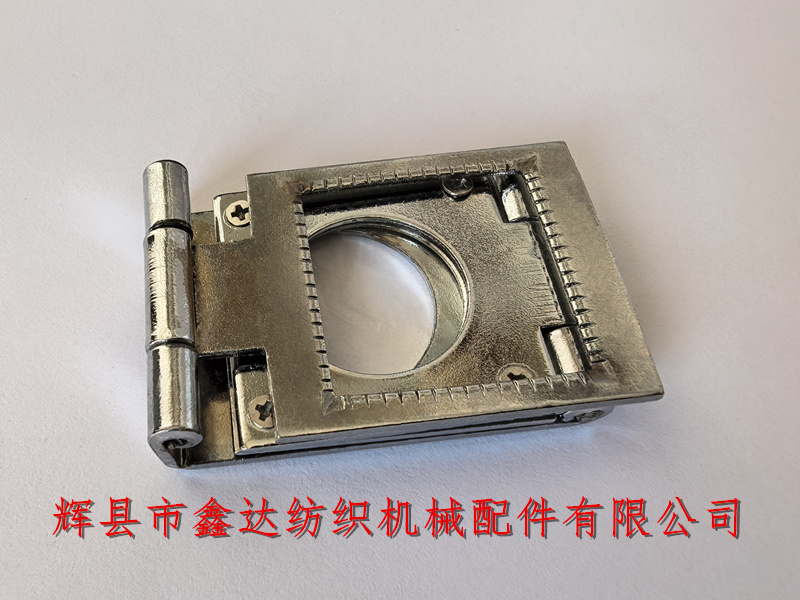

The above picture shows the folded appearance of the chrome cloth inspection mirror, and the following picture shows its unfolded appearance during normal use. This design is convenient to carry, and the fixed lens is magnified 5x, making it easier to count the latitude and longitude.

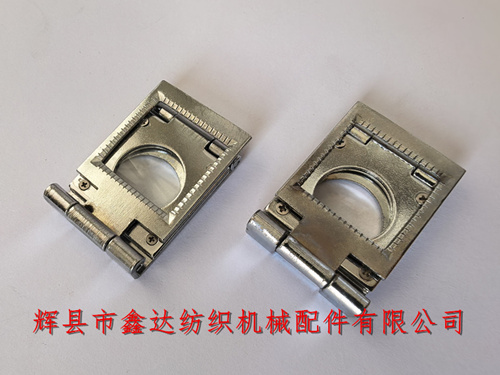

The above picture is a side view of a 1-inch (5x) chrome plated fabric inspection mirror unfolded. The overall width is 32.5mm, and the total height when unfolded and placed upright (as shown in the picture below) is 45mm. The distance between the lens and the fabric contact surface is 43mm.

The metal bracket cloth inspection mirror is an accessory tool of the weaving machine, packaged in paper boxes, each box containing one. When checking the density of the fabric, the fabric is laid flat under the cloth inspection mirror, and the numbers are counted sequentially through the serrated scale on the lower (square) border.

If you need to purchase weaving machine tools and equipment such as fabric inspection mirrors and density mirrors, please contact Mr. Yang from our company for consultation. We sincerely welcome the visit and guidance of new and old customers.
