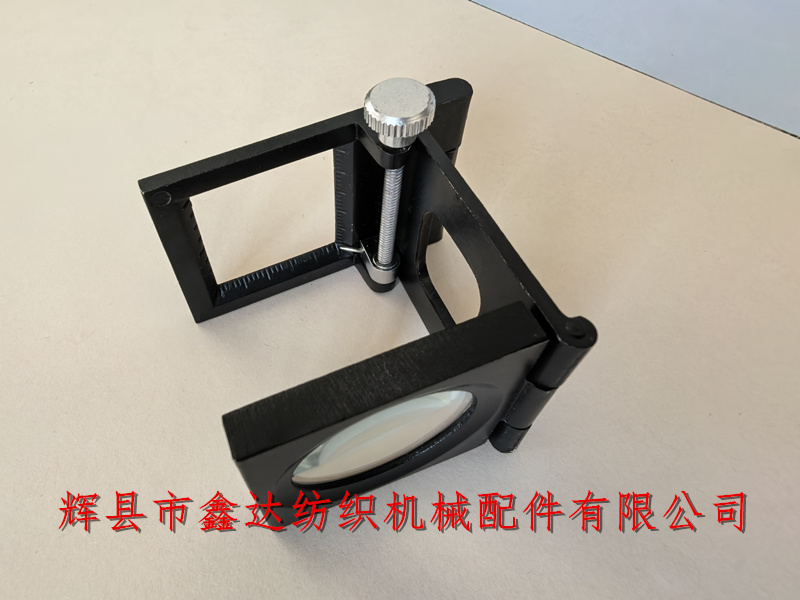

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1" 5x (Aluminum Alloy) Fabric Density Mirror, 1-inch 5-fold (aluminum alloy) cloth inspection mirror fabric density mirror textile preparation tools. Density Mirror,Fabric Density Mirror,5 Times Mirror,Aluminum Alloy, The foldable metal material cloth inspection mirror consists of three sections, one section is a 5-fold lens, and the other section is a spacing support frame. Below is a 1-inch observation frame, and next to it are metal screws and pointers, which are used to rotate the screw and move the needle position for counting during observation.

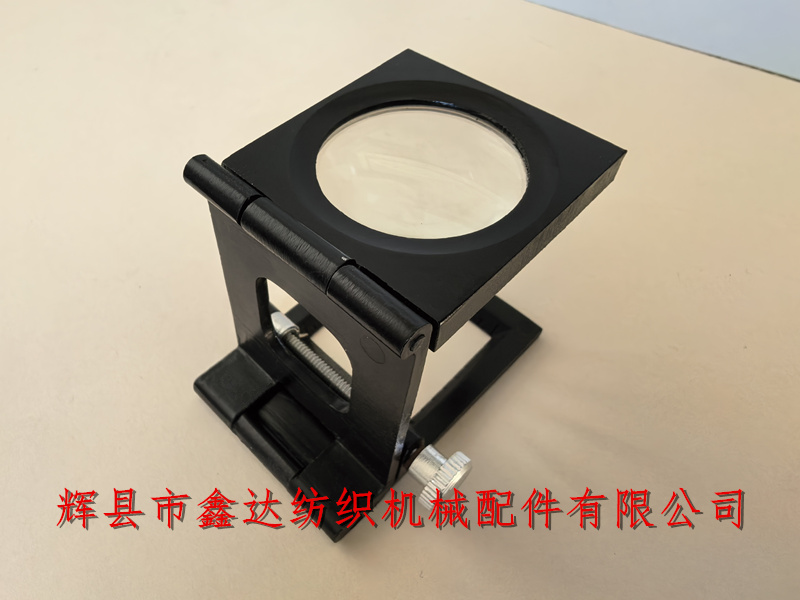

The above picture shows the standing state of the 5x cloth inspection mirror when in use, with the viewing angle being the rear side view. The distance between the upper plane with the lens and the square bottom surface is 48.5mm, and the total height is 51.5mm.

The above picture is a side view of the fabric inspection mirror, with a metal screw used to move the pointer and follow the slider for linear displacement. The main material of this 1-inch 5x cloth inspection mirror is aluminum alloy material, with a black coating on the outer surface.

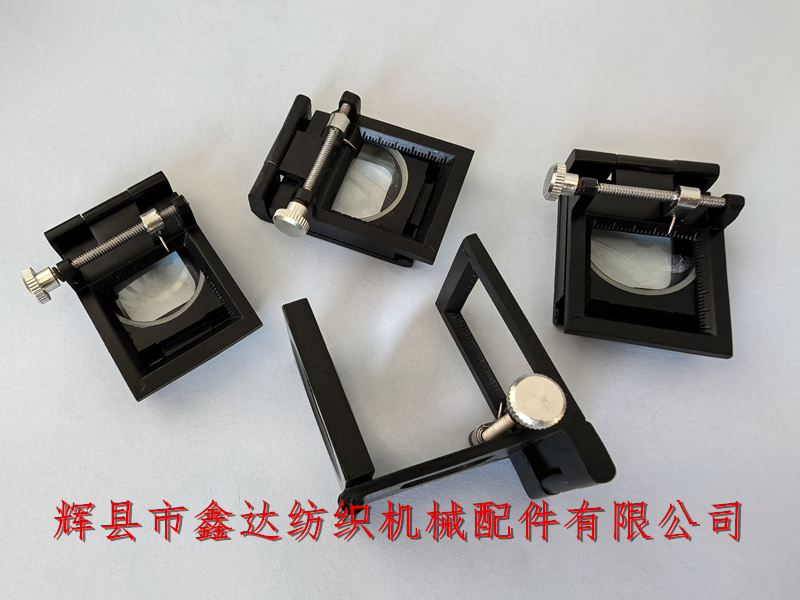

Due to its appearance resembling plastic material, it is also known as the "plastic fabric inspection mirror". The overall design structure is simple and easy to carry, used to analyze the number of warp and weft yarns in a 1-inch unit of fabric. It is a tool for analyzing warp and weft structures.

The packaging for the 1-inch fabric inspection mirror is a paper box, with 1 piece per box; If you need to purchase shuttle textile tools such as metal fabric inspection mirrors, plastic fabric inspection mirrors, fabric density mirrors, and textile 5x mirrors, please contact Mr. Yang from our company for negotiation.
