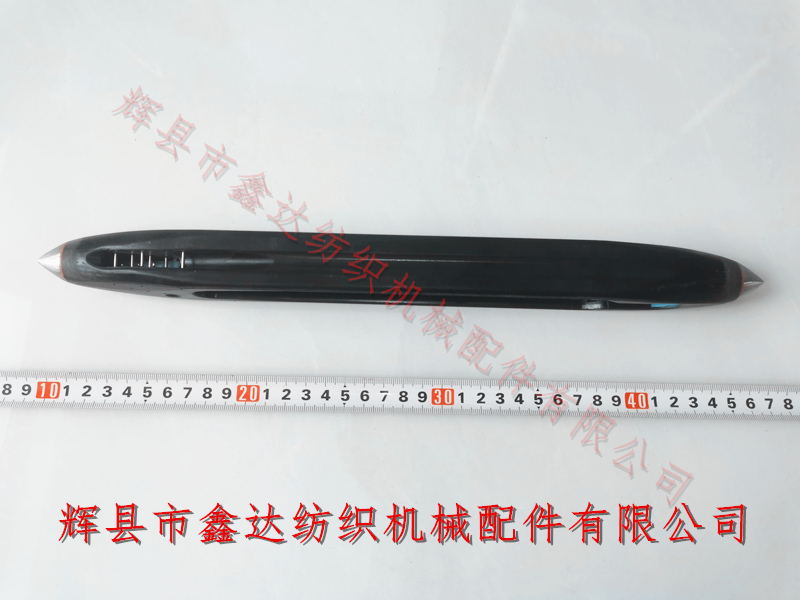

Huixian Xinda Textile Machinery Accessories provides TS-6 shuttle photoelectric coreless nylon weaving machine 370mm flexible shuttle, weaving shuttle, TS-6 photoelectric shuttle, coreless shuttle, nylon shuttle, three eye flexible shuttle, textile equipment. The size parameters of TS-6 coreless shuttle are: total length is 37 centimeters, the bottom outer width of PU chuck position is 39 millimeters, the outer width of upper coreless chuck position is 40.5mm, and the total height is 30 millimeters; The outer width of the flexible position is 38.6 millimeters.

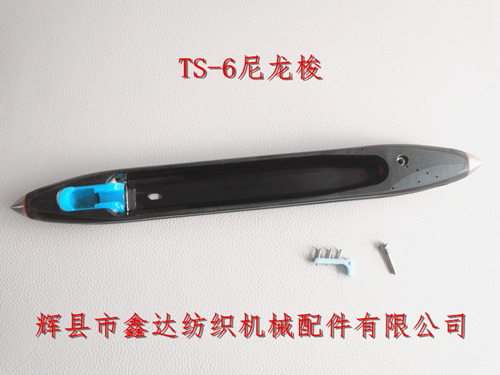

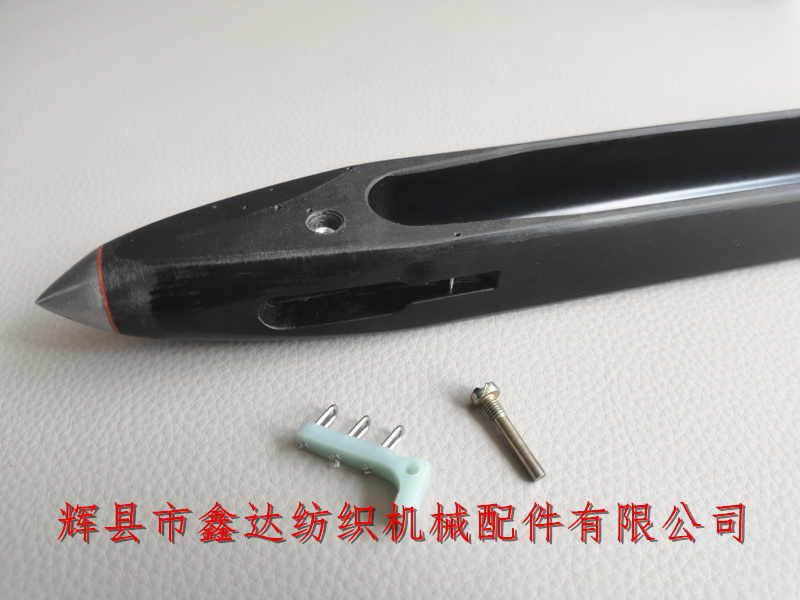

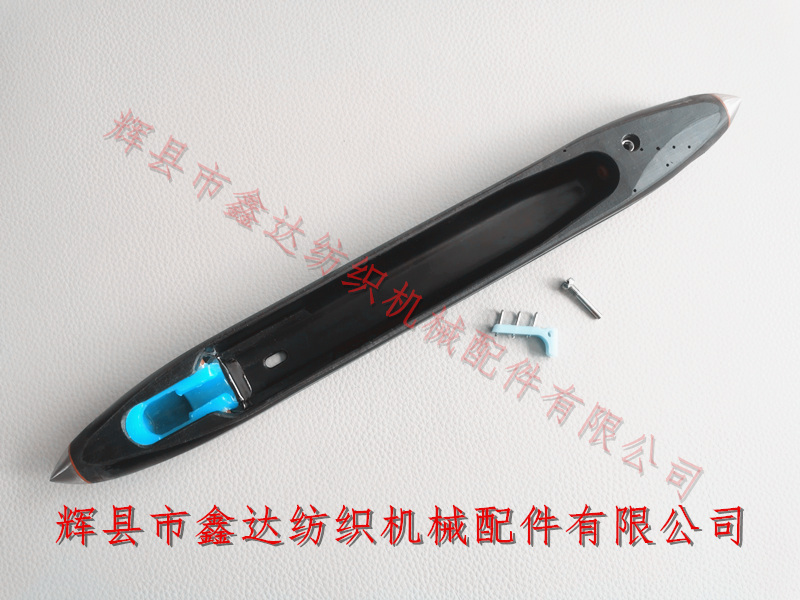

The length of the coreless tube used in conjunction with the TS-6 shuttle is 210 millimeters or 220 millimeters. The above figure shows the disassembly and assembly diagram of the coreless shuttle TS-6 flexible, which is a three eye stainless steel flexible and the locking screw is a flat head screw.

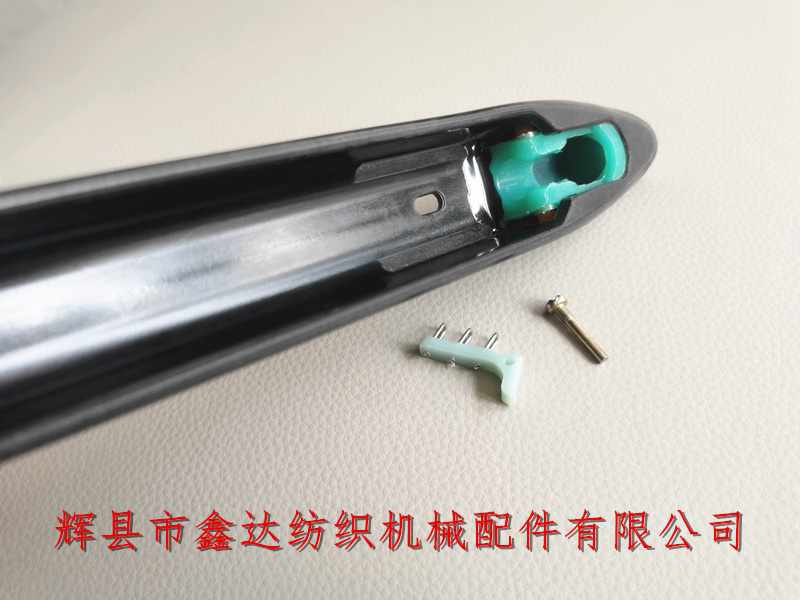

The size of the bottom hole of the shuttle is 5 millimeters wide and 11 millimeters long. The diameter of the circular opening of the clamp is 12 millimeters, and the neck diameter of the coreless tube is 12.5 millimeters.

The view of the flexible installation of rubber bands at the front of the shuttle is as shown above. There are a total of 7 steel needles in the front of the TS-6 nylon shuttle, 4 for flexible yarn guidance, 2 for weft insertion during yarn output, and 1 for fixing the expansion and contraction of the rubber bands. There is also a nut in the flexible hole of the shuttle body.

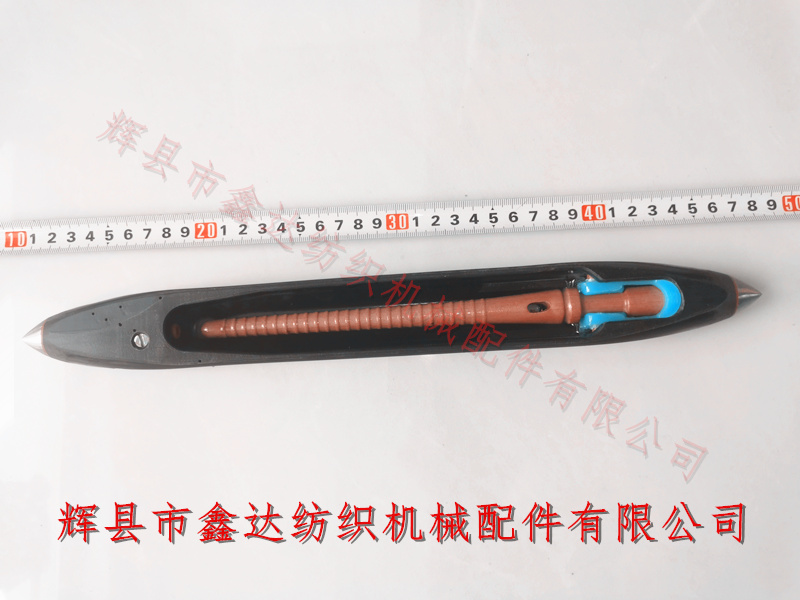

The weight of a single TS-6 photoelectric coreless shuttle is 254 grams. This photoelectric shuttle does not have a right hand (as shown in the picture, it is a left mobile phone) and is packaged in cardboard boxes with 50 pieces per box; Explanation: The length of the pink coreless tube is 220mm, and the length of the wooden coreless tube is 230mm.

If you need to purchase shuttle textile equipment products such as TS-6 shuttle, photoelectric coreless nylon shuttle, weaving machine 370mm flexible shuttle, etc., you can contact Mr. Yang from our company for consultation.
