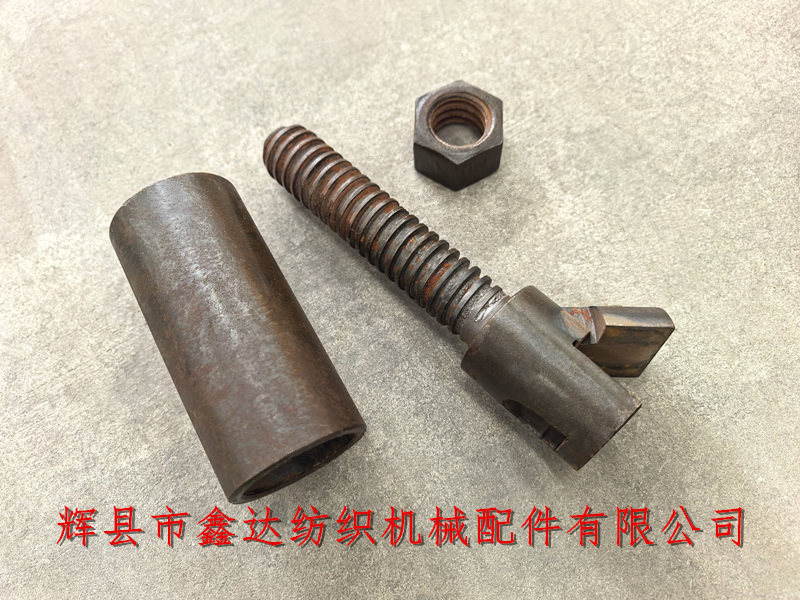

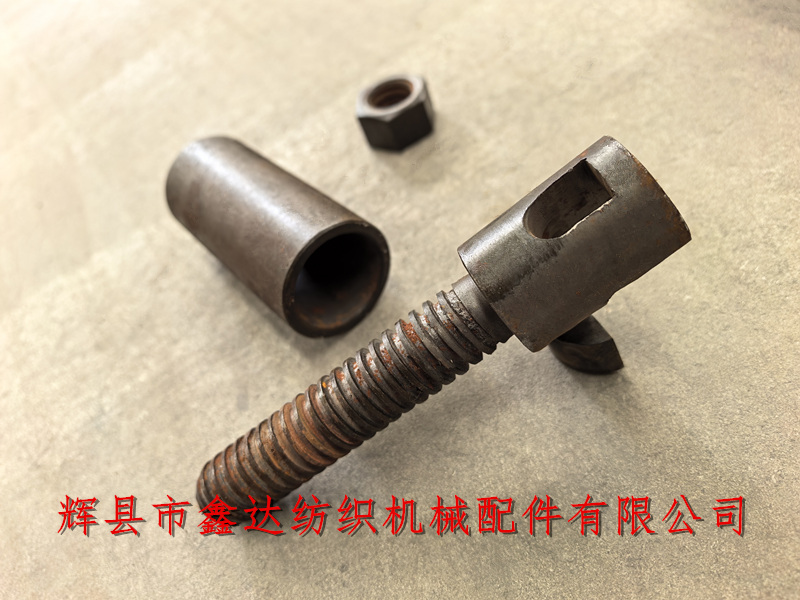

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Straight Barrel Key Puller 8-110 Pin Puller Tool,Sleeve Type Key Puller 8-110 Pin Puller Tool, a straight tube key puller 8-110 pin puller disassembly hook key weaving machine tool, with a simple design that facilitates the disassembly of the weaving machine hook key. It has a relatively small size and is inexpensive. The overall structure consists of a screw (including a front slot), a steel nut, and a housing sleeve, as shown in the following figure:

The hook keys on the weaving machine mainly include E8 (the connection key between the 72 tooth tread shaft gear and the tread shaft), D4 motor belt pulley hook key, and automatic shuttle changing component hook key. The width of the hook key is generally 8mm or 12mm.

When using a straight tube puller, first loosen the nut to open the front card head of the puller, and insert the hook head of the hook key into the card slot. Then tighten the nut at the rear of the puller and gradually rotate it to pull the hook key out of the installation position. The material of the dismantling hook key weaving machine tool for the straight tube key puller 8-110 pin puller is 45 # steel.

There are various styles of loom maintenance tools 8-110, but the principle is the same. If you need to purchase textile key pullers, pin pullers, loom tools, hook key disassembly tools and other products, you can contact our company.

We sincerely welcome everyone's visit. Straight Barrel Key Puller 8-110 Pin Puller Tool, Textile tools, weaving machine repair tools, and other flat car installation tools can also consult us.
