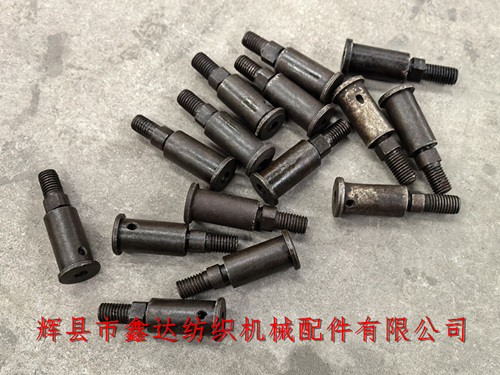

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides F209 Starting Arm Mandrel F219 Brake Shaft,loom accessories -F209 starting arm, switch arm mandrel F219 steel belt and brake arm shaft. The dimensions of these two loom pins are similar. F209 starting arm mandrel has an oil injection hole, but F219 steel belt pin does not. Their shaft diameters are 20mm and their lengths are 38mm, and the lengths of front screw and chuck are 34mm and 30mm respectively. They can be borrowed from each other.

Loom mandrel F219 is used to fix the tail of brake steel belt, or is installed in the middle of the brake lever of F217(GA615-4104). The above picture shows the installation of pin shaft on F00-6 steel belt.

The oil injection holes of loom F209 are shown in the above figure. They are installed on the switch arm of loom upside down and fixed on the bracket F41 on the bending shaft side. At the same time, it can also be inserted into the starting arm F206(GA615-4102) and fixed on the starting arm bracket F208(GA615-4115).

There are many kinds of pins and mandrels used in shuttle loom accessories, which are often located in the key position of loom transmission structure and play an important role. Each loom uses two F209 and two F219, and sometimes they can replace each other.

If you need to purchase textile parts such as loom spindle, switch arm pin shaft, starting arm spindle and steel belt spindle, you can contact Mr. Yang of our company for consultation, and you can also know their other detailed parameters and sizes.
