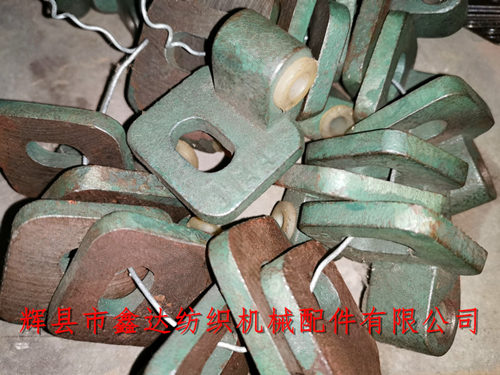

Our company provides GA615 with 1515k loom accessories, GA615 Loom 3144 Anti Shuttle Seat,such as 3144 anti shuttle seat (supporting foot), 3145 anti shuttle bar middle supporting foot, 3147 anti shuttle bar foot bushing (length 2.2cm, outer diameter 12.2mm) and other shuttle loom accessories. The 3144 is made of HT15-32 material and connected with 3100-6 or 3100-7 (reed cap).

Overall dimension of GA615-3144 anti flying shuttle rod seat: length 53mm, width 45.5mm, height 32mm. Xinda Textile machinery accessories focuses on the development and customization of all kinds of special textile parts and equipment products.

3147 nylon sleeve is installed inside the anti shuttle seat, with the inner hole diameter of 8mm, which is used to fix the anti shuttle rod. Each string of base support feet is 20 sets, regardless of left and right hands.

The bottom of 1515K anti flying shuttle seat is smooth and machined by planer. The length of the hole on the supporting foot is 22mm + 3.4mm (the thickness of the outer edge of nylon). Two loom accessories are used for each set. If you want to buy 3144, anti shuttle accessories, please contact our company for loom accessories.
